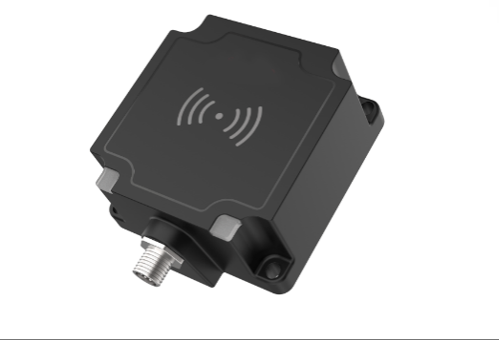

Ultra High Frequency Reader
The reader is a highly stable, contactless industrial-grade read/write device featuring user-friendly operation, excellent sealing and heat dissipation, high reception sensitivity, stable performance, and strong reliability. Operating within the 902–928 MHz frequency band, it supports the ISO/IEC 18000-6C / EPC G2C1 international interface standard, LAN and RS485 interface communications, and Modbus protocol. Users can perform inventory EPC checks, read memory areas, and write memory areas by simply operating the reader’s hold registers and input registers using standard Modbus commands.
Ultra High Frequency Reader
Key Features:
Products undergo 100% testing via European-imported label consistency systems to ensure operational stability;
Materials meet environmental certification standards;
RT140 Series
Product Features:
- Supports RS232 and RS485 interface communication with Modbus protocol compatibility
- Complies with ISO/IEC 18000-6C / EPC G2C1 international interface standards
- Effective read/write range up to 200cm (Data source: Impinj E41b UHF tag, ambient temperature with no other interference)
- Built-in LED indicator and buzzer
- ABS engineering plastic housing, withstands 1.2-meter drop
- Overcurrent, overvoltage, and reverse polarity protection
- Provides comprehensive dynamic link libraries and demonstration software
Equipment Parameters:
- Operating Frequency: 902~928MHz
- Interface Type: M12 5-pin / M12 8-pin
- Compliant Standards: ISO/IEC 18000-6C / EPC G2C1 International Interface Standards
- Communication Protocol: MODBUS
- Sensing Range
Reading Distance: 0~200cm (Depends on tag performance and operating environment)
Write Distance: 0–200 cm (Depends on tag performance and operating environment) - Read/Write Time
Read one Block: 30ms
Write one Block: 40ms - Operating Voltage: DC12~28V, POE
- RF Power: 0-28dBm (adjustable)
- Signal Indication: LED
- Communication Interface: RS485/LAN (optional)
- Operating Temperature: -25℃~+65℃
- Housing Material: ABS
- Dimensions: 90×90×41mm
- Protection Rating: IP67
- Certification Standards: CE, ROHS
Typical Applications:
Widely used in production automation, tool management, and production line data collection.
RT147 Series
Product Features:
- Supports LAN and RS485 interface communication with Modbus protocol compatibility
- Complies with ISO/IEC 18000-6C / EPC G2C1 international interface standards
- Effective read/write range up to 7m (Data source: Impinj E41b UHF tag, ambient temperature with no other interference)
- Built-in LED indicator and buzzer
- ABS engineering plastic housing withstands 1.2-meter drop
- Overcurrent, overvoltage, and reverse polarity protection
- Provides comprehensive dynamic link libraries and demonstration software
Equipment Parameters:
- Operating Frequency: 902~928MHz
- Interface Type: M12 5-pin / M12 8-pin
- Compliant Standards: ISO/IEC 18000-6C / EPC G2C1 International Interface Standards
- Communication Protocol: MODBUS
- Read/Write Time
Read one Block: 30ms
Write one Block: 40ms - Operating Voltage: DC12~28V, POE
- RF Power: 0-30dBm (adjustable)
- Signal Indication: LED
- Communication Interface: RS485/LAN (optional)
- Operating Temperature: -25℃~+65℃
- Housing Material: ABS
- Dimensions: 132×132×55mm
- Protection Rating: IP67
- Certification Standards: CE, ROHS
Typical Applications:
Widely used in production automation, tool management, and production line data collection.
RT149 Series
Product Features:
- Supports RS232 and RS485 interface communication with Modbus protocol compatibility
- Complies with ISO/IEC 18000-6C / EPC G2C1 international interface standards
- Effective read/write range up to 10cm (Data source: Impinj E41b UHF tag, ambient temperature with no other interference)
- Built-in LED indicator and buzzer
- ABS engineering plastic housing, withstands 1.2-meter drop
- Overcurrent, overvoltage, and reverse polarity protection
- Provides comprehensive dynamic link libraries and demonstration software
Equipment Parameters:
- Operating Frequency: 902~928MHz
- Interface Type: M12 5-pin / M12 8-pin
- Compliant Standards: ISO/IEC 18000-6C / EPC G2C1 International Interface Standards
- Communication Protocol: MODBUS
- Read/Write Time
Read one Block: 30ms
Write one Block: 40ms - Operating Voltage: DC12~28V, POE
- RF Power: 0-28dBm (adjustable)
- Signal Indication: LED
- Communication Interface: RS485/LAN (optional)
- Operating Temperature: -25℃~+65℃
- Housing Material: ABS
- Dimensions: 90×90×41mm
- Protection Rating: IP67
- Certification Standards: CE, ROHS
Typical Applications:
Widely used in production automation, tool management, and production line data collection.
