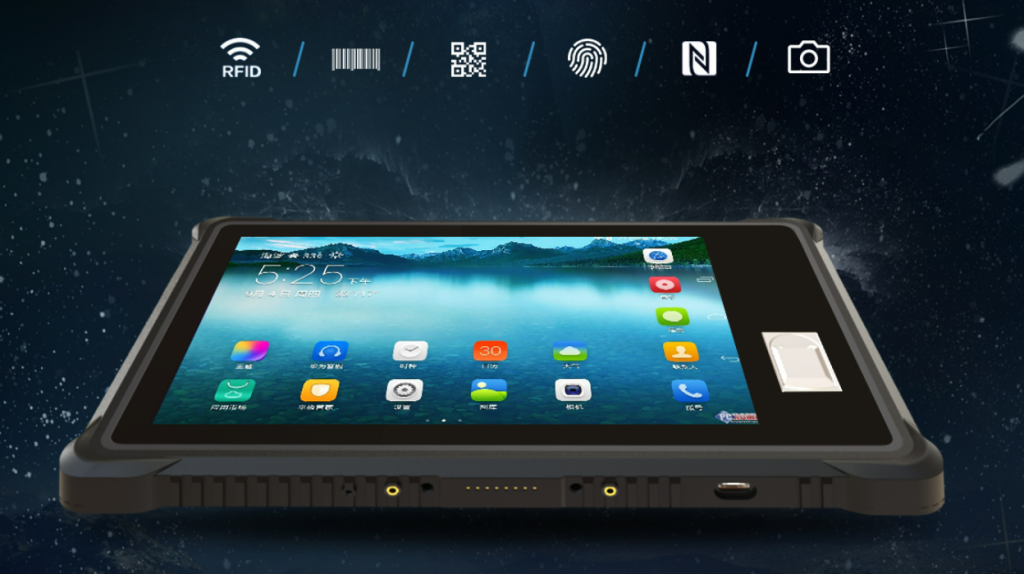

rTP10 Multifunctional Industrial Pad
RTP10 is a versatile, high-performance industrial tablet featuring an aesthetically pleasing exterior and rational structural design. Equipped with a Qualcomm A53 architecture octa-core CPU, it delivers robust processing power. The 8.0-inch ultra-high-definition display with multi-touch capability provides users with an exceptional experience. Capable of integrating RFID, NFC, fingerprint recognition, and second-generation ID card functions, it is widely applicable across retail, warehousing, and other industries.
Key Features:
- Excellent UHF read/write capability with a maximum read range of 15 metres
- Advanced data capture functionality, fully supporting both 1D and 2D barcode scanning
- Built-in NFC full-protocol module, compatible with 13.56 MHz tags across various protocols
- Diverse functional configurations: Fingerprint recognition, 433 MHz, 2.4 GHz, second-generation ID card and other modular expansions
- 13-megapixel autofocus camera for effortless image and video capture
- 11,000mAh high-capacity battery for extended endurance
- Supports the latest QC 3.0 fast charging technology for accelerated recharging
Basic Parameters:
Physical Parameters
- Processor Cortex-A53 2.0GHz octa-core CPU
- Operating System Android 9.0
- Memory 2GB RAM, 16GB Flash (3GB+32GB or 4GB+64GB optional configurations)
- Display 8.0-inch FHD full high-definition LCD screen, resolution 1920*1200, with capacitive glass touchscreen, multi-touch
- Keyboard Side buttons (one SCAN key, one camera key, volume +- keys, power key)
- Interfaces USB 3.0 Type-C, OTG
- Slots MicroSD (supports up to 128GB); 1x SIM slot, 2x PSAM slots
- Audio 1x speaker, 1x microphone
- Battery Standard 3.7V/11000mAh lithium battery
- Dimensions 244(H) x 150(W) x 20(T) mm
- Weight 360g (subject to actual product)
Operating Environment
- Operating temperature -20°C to 65°C
- Storage temperature -40°C to 70°C
- Humidity 5%RH to 95%RH (non-condensing)
- Protection rating IP65 high industrial protection rating
Data Acquisition and Output
- One-dimensional barcodes
Code 39, Postal Code, Code 128, Matrix 2 of 5, EAN-13, EAN-8 and other symbologies - Two-dimensional barcodes
PDF417, QR Code, MaxiCode, Data Matrix, Code 49 and other symbologies - RFID
(A) Operating frequency: 13.56 MHz; supports NFC, ISO 14443, and ISO 15693 protocols
(B) Operating frequency: 902–928 MHz; supports ISO 18000-6B and ISO 18000-6C (EPC C1 G2) protocols; readable up to 25 metres - GNSS Integrated GPS/GLONASS/BeiDou, supporting AGPS
- Fingerprint recognition FPC sensor, supporting 1:N matching
- Camera Supports 8MP front camera, 13MP rear camera with autofocus
Wireless Communicatio
- WiFi IEEE 802.11 a/b/g/n/ac (2.4G/5G dual-band)
- Bluetooth Bluetooth 4.2
- 4G 4G full network compatibility
- Other (optional) 433MHz and other custom wireless modules
