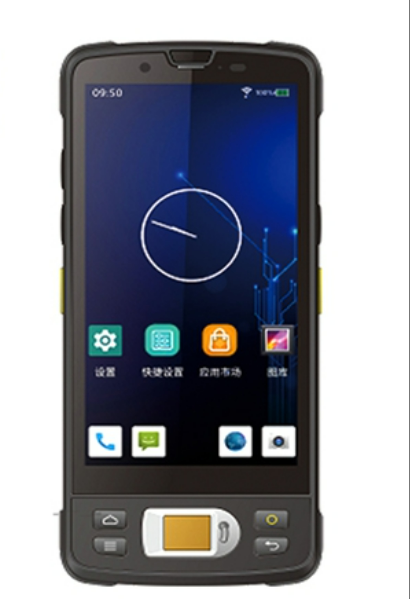

RTM12 Android Handheld Terminal
RTM12 is an industrial-grade mobile data acquisition terminal integrating multiple functions. It combines data collection modules such as RFID identification, 1D/2D barcode scanning, fingerprint capture, and image acquisition with wireless communication technologies including 4G full-network connectivity, WiFi, and Bluetooth. This enables convenient data collection anytime, anywhere, with real-time interaction with backend servers via wireless communication, meeting diverse mobile operational requirements.
Key Features:
- 5.45-inch Full HD LCD display, resolution 1440×720
- MTK octa-core 2.0GHz processor, 2GB RAM + 16GB storage; optional configurations: 3GB RAM + 32GB storage or 4GB RAM + 64GB storage
- Keyboard: Directional keys, fingerprint sensor, numeric keypad (optional)
- High protection rating: IP65
Basic Parameters:
Physical Parameters
- Processor MTK6762WD 2.0GHz octa-core CPU
- Operating System Android 10.0
- Memory 2GB RAM, 16GB ROM; optional 3GB+32GB or 4GB+64GB configurations
- Display 5.45-inch HD Full HD LCD screen, resolution 1440×720, with capacitive glass touchscreen and multi-touch capability
- Keyboard Directional keys, fingerprint sensor, numeric keypad (optional); keyboard supports backlit keys; 5 physical side buttons
- Charging Port USB 3.0 Type-C, OTG
- Expansion Slots MicroSD, supports up to 256GB; 1 SIM card slot, 1 PSAM card slot
- Audio 1 speaker, 1 microphone, supports Type-C headphones
- Battery Battery capacity 5000mAh/3.8V, QC3.0 fast charging
- Charging Power Charging power ≥18W
- Standby time 500 hours (subject to local network conditions)
- Operating time 18 hours (subject to local network conditions)
- Dimensions 178 (H) × 75.2 (W) × 16 (T) mm (UHF section thickness 19.2 mm)
- Weight 290 g (actual unit weight, excluding handle)
Wireless Communication
- WiFi IEEE 802.11a/b/g/n/ac (2.4GHz/5GHz dual-band)
- Bluetooth BT 5.0
- Network (Multi-mode) 4G Full Network Compatibility
Data Acquisition and Output
- GNSS GPS/A-GPS/BeiDou/GLONASS
- Camera Supports 8MP front camera, 16MP rear camera, true flash, photography and video recording
- Sensors Accelerometer, proximity sensor, ambient light sensor, electronic compass, gyroscope
- Fingerprint Customer-supplied module
- UHF RFID China frequency: 920-925MHz; Protocol standard: EPC C1 Gen2/ISO 18000-6C; Read range: 0-1 metre (subject to site conditions and tag performance)
Operating Environment
- Operating temperature -20°C to 60°C
- Storage temperature -40°C to 70°C
- Humidity 5% RH to 95% RH (non-condensing)
