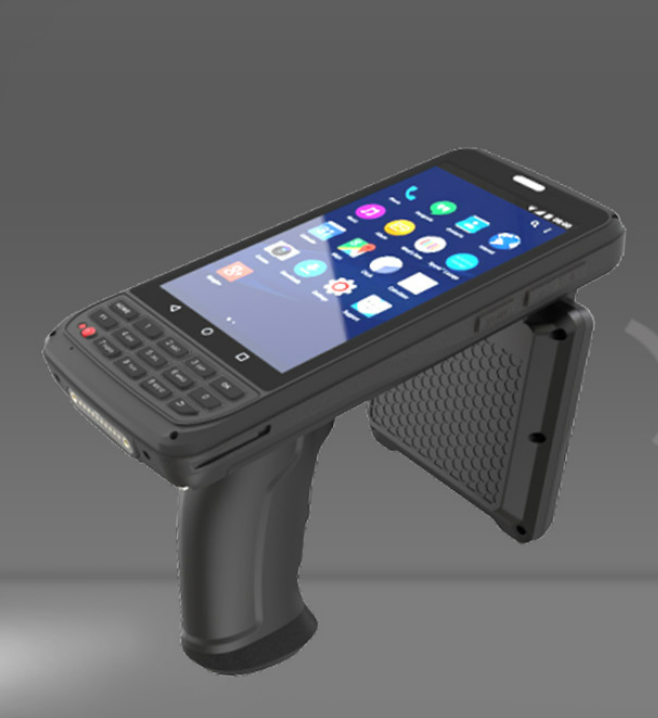

RTM11 Industrial-Grade Handheld Terminal
RTM11 is a rugged, multi-functional industrial-grade mobile data collection terminal. It integrates data acquisition modules such as RFID identification, 1D/2D barcode scanning, fingerprint capture, image acquisition, and GPS information with 4G full-network connectivity, WiFi, Bluetooth, and 433MHz wireless communication technologies. This enables convenient data collection anytime, anywhere, with real-time interaction with backend servers via wireless communication, meeting diverse mobile operational requirements.
Key Features:
- 5.5-inch FHD full-definition LCD screen, resolution 1920×1080
- Visible in bright light, indoor eye-protection mode with automatic brightness adjustment
- Qualcomm octa-core 2.0GHz processor, 2GB RAM + 16GB storage, optional 4GB RAM + 64GB storage
- Keyboard: Directional keys, fingerprint sensor, full keyboard optional
- Built-in battery capacity gauge, dual-battery integrated design with ultra-high capacity
- 12000mAh, supports QC3.0 fast charging
- 2.1cm body thickness, accommodates 2.4GHz/433MHz/second-generation ID card modules
- UHF reading range: 0-15 metres, excellent inventory performance with high directionality
- High protection rating: IP65
Basic Parameters:
Physical Parameters
- Keyboard Directional keys, fingerprint sensor, full keyboard (optional)
- Interfaces USB 3.0 Type-C, OTG
- Slots (optional) MicroSD (supports up to 256GB): 1 SIM slot, 2 PSAM slots
- Audio 1 speaker, 1 microphone, vibration
- Battery Standard 3.7V/6000mAh lithium battery; handle-equipped model features expandable 6000mAh lithium battery
- Dimensions 180(H) × 80(W) × 18(T) mm
- Weight 300g (with UHF module) (subject to actual product)
- Charging QC3.0 fast charging
Operating Environment
- Operating temperature -20°C to 65°C
- Storage temperature -40°C to 70°C
- Humidity 5%RH to 95%RH (non-condensing)
- Protection rating IP65 high industrial protection rating
Data Acquisition and Output
- Barcode Scanning
Supported Barcode Formats: 1D/2D barcode scanning supported, including Codebar, Codeblock, Code128, Code32, Grid Matrix, Code39, Code93, Composite, Data Matrix, EAN8, EAN13, GS1-128, Han Xin, IATA25, INT25, ISBT 128, Matrix 2 or 5, MaxiCode, MicroPDF, MSI, PDF417, QR, Telepen, UPA-A, UPC-E0, UPC-E1, Postal Codes, etc. - RFID
(A) Operating frequency 13.56MHz; supports NFC, ISO 14443, ISO 15693 protocols
(B) Operating frequency 902–928 MHz; supports ISO 18000-6B and ISO 18000-6C (EPC C1 G2) protocols
(C) LF RFID identification, supporting 125kHz/134.2kHz
(D) 2.4 GHz, supporting active long-range electronic tag identification - GNSS Integrated GPS/GLONASS/BeiDou, supporting AGPS
- Fingerprint recognition FPC sensor
- Camera Supports 8-megapixel front camera and 13-megapixel rear camera, supporting photography and video recording
