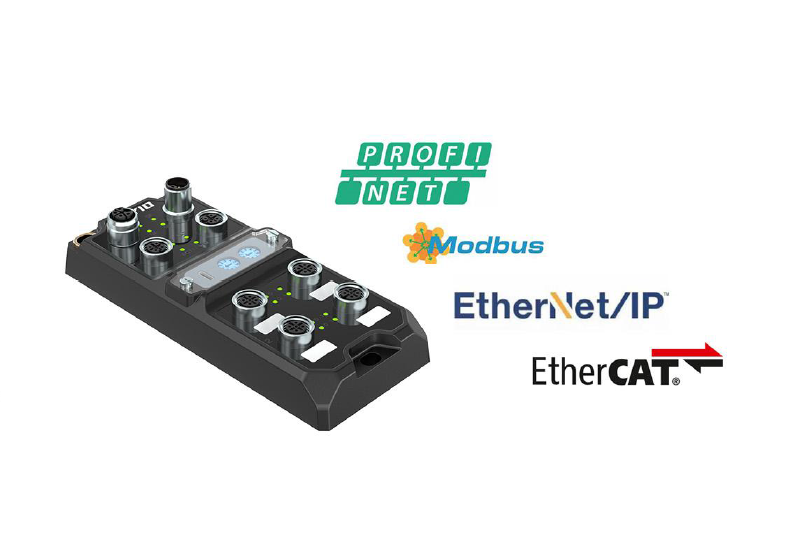

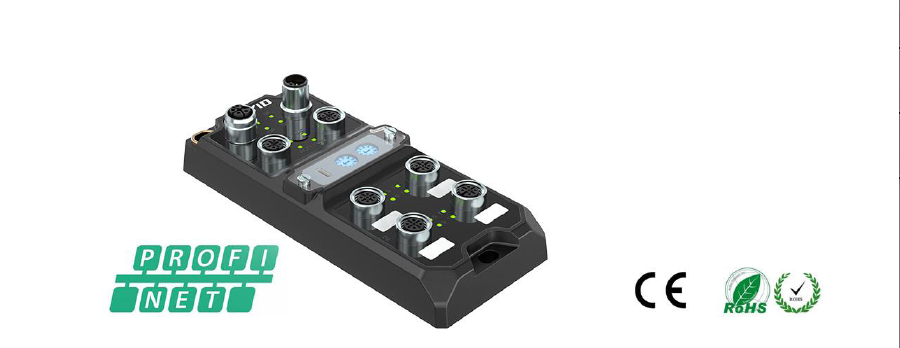

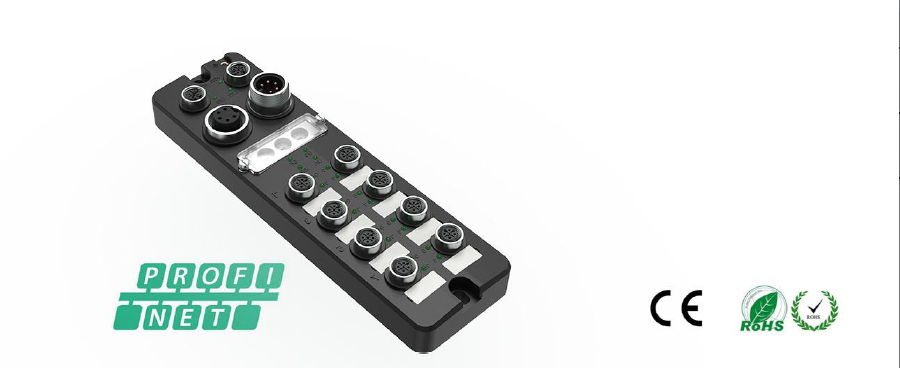

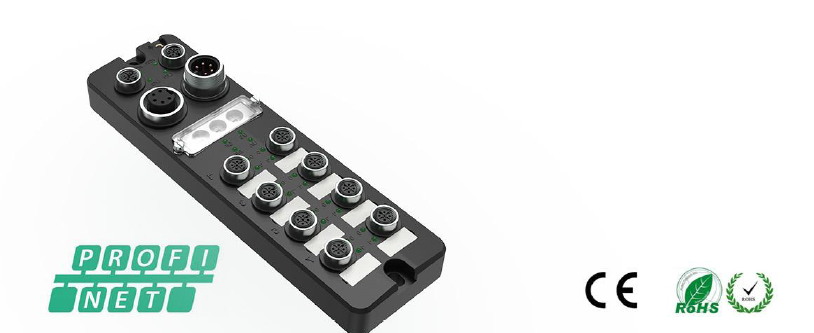

protocal Gateway
The module can interface with various digital and analogue signal types, offering extensive model combinations to accommodate complex requirements. It features adaptive input/output modes and boasts a compact, space-saving design for straightforward installation.
protocal Gateway
Key Features:
Supports multiple industrial protocols, enabling flexible switching between various protocols;
Epoxy resin potting with sealing rings on all ports, IP67 protection rating;
Reverse polarity protection—reverse connection of the main power supply will not damage the device;
Overcurrent fault protection with alerts, automatically resets after fault resolution;
Housing material: ABS + PC.
Environment
Fully encapsulated design with superior shock resistance;
Compact and space-saving form factor for easy installation.
Communication
Quick-connect terminals ensure safety and reliability;
Integrated communication core delivers high-speed stability.
Signals
Rich signal combinations for complex requirements;
Input/output adaptive mode.

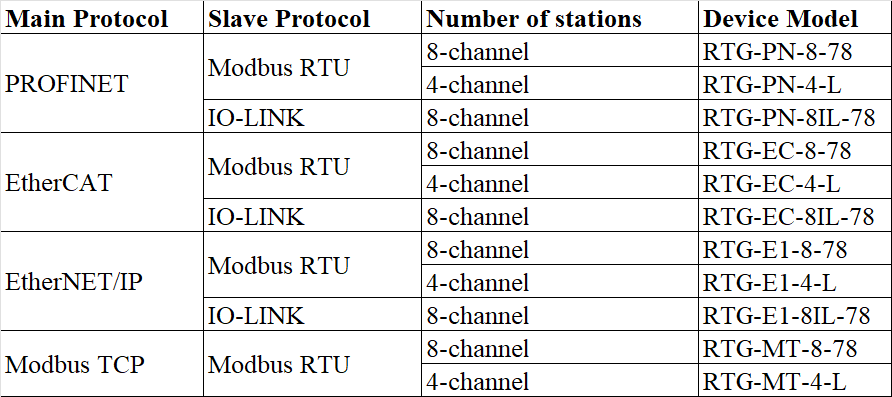

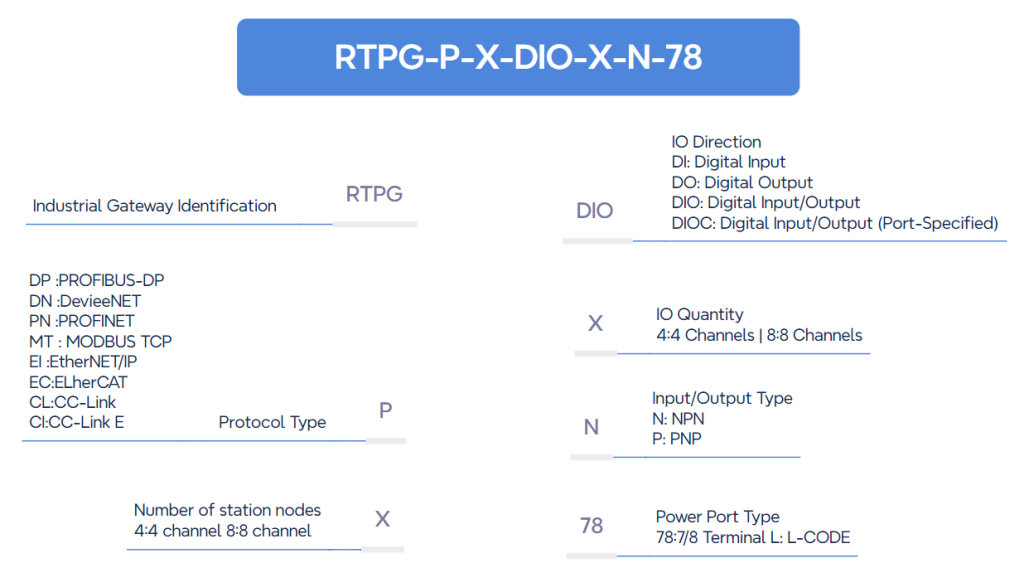

Quick Gateway Selection Guide
|
Parameters/Model |
RTG-PN-4-L |
RTG-EC-4-L |
RTG-E1-4-L |
RTG-MT-4-L |
|---|---|---|---|---|
|
Supply Voltage |
+18~28V DC |
+18~28V DC |
+18~28V DC |
+18~28V DC |
|
Hosting Protocol |
PROFINET |
EtherCAT |
EtherNet/IP |
Modbus TCP |
|
Slave Protocol |
Modbus RTU |
Modbus RTU |
Modbus RTU |
Modbus RTU |
|
Slave Qty |
4 RS485 |
4 RS485 |
4 RS485 |
4 RS485 |
|
Operating Temperature |
-25°C~+65°C |
-25°C~+65°C |
-25°C~+65°C |
-25°C~+65°C |
|
Shell Material |
ABS+PC |
ABS+PC |
ABS+PC |
ABS+PC |
|
Protection Rating |
IP67 |
IP67 |
IP67 |
IP67 |
|
Mounting Method |
3-hole bolt mounting |
3-hole bolt mounting |
3-hole bolt mounting |
3-hole bolt mounting |
|

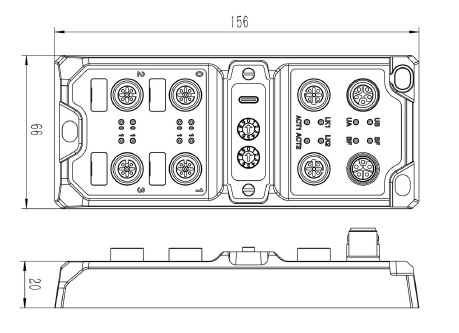

Dimensions |
156 x 66 x 24mm |
156 x 66 x 24mm |
156 x 66 x 24mm |
156 x 66 x 24mm |
Commonly used connectors
Communication Connector-RT-L04N-1-V-XX
Power Connector-RT-1205N-S-V-XX
Station Communication Line-RT-1205S-1-V-XX
|

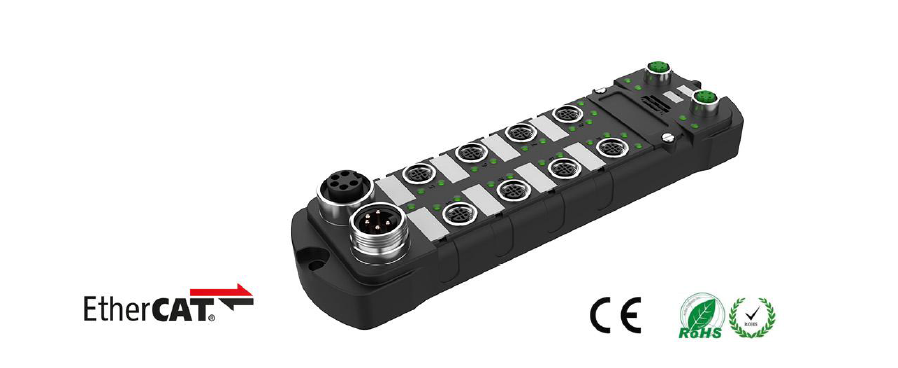

Parameters/Model |
RTG-PN-8-78 |
RTG-EC-8-78 |
RTG-EI-7-78 |
RTG-MT-8-78 |
|---|---|---|---|---|
|
Supply Voltage |
+18~28V DC |
+18~28V DC |
+18~28V DC |
+18~28V DC |
|
Hosting Protocol |
PROFINET |
EtherCAT |
EtherNet/IP |
Modbus TCP |
|
Slave Protocol |
Modbus RTU |
Modbus RTU |
Modbus RTU |
Modbus RTU |
|
Slave Qty |
8 RS485 |
8 RS485 |
8 RS485 |
8 RS485 |
|
Operating Temperature |
-25°C~+65°C |
-25°C~+65°C |
-25°C~+65°C |
-25°C~+65°C |
|
Shell Material |
ABS+PC |
ABS+PC |
ABS+PC |
ABS+PC |
|
Protection Rating |
IP67 |
IP67 |
IP67 |
IP67 |
|
Mounting Method |
2-hole bolt mounting |
2-hole bolt mounting |
2-hole bolt mounting |
2-hole bolt mounting |
|

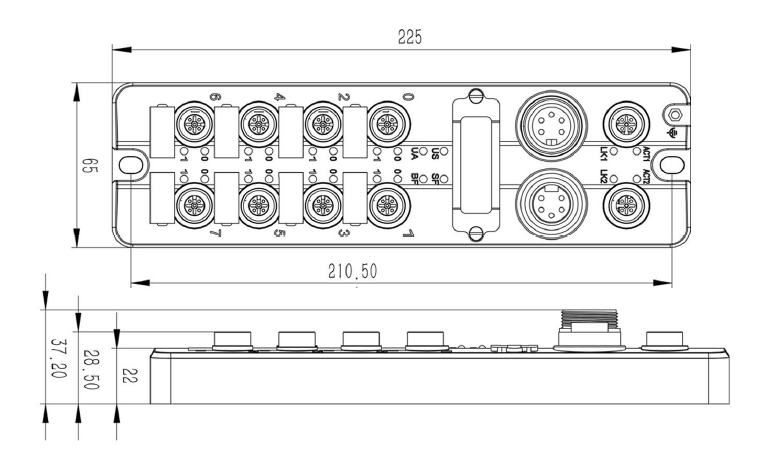

Dimensions |
225 x 65 x 37.2mm |
225 x 65 x 37.2mm |
225 x 65 x 37.2mm |
225 x 65 x 37.2mm |
|
Parameters/Model |
RTG-PN-8IL-78 |
RTG-EC-8IL-78 |
RTG-E1-8IL-78 |
|---|---|---|---|
|
Supply Voltage |
+24V DC |
+24V DC |
+24V DC |
|
Hosting Protocol |
PROFINET |
EtherCAT |
EtherNet/IP |
|
Slave Protocol |
IO-LINK |
IO-LINK |
IO-LINK |
|
Slave Qty |
8 |
8 |
8 |
|
Operating Temperature |
-30°C~+70°C |
-30°C~+70°C |
-30°C~+70°C |
|
Shell Material |
PA6 |
PA6 |
PA6 |
|
Protection Rating |
IP67 |
IP67 |
IP67 |
|
Mounting Method |
3-hole bolt mounting |
3-hole bolt mounting |
3-hole bolt mounting |
|

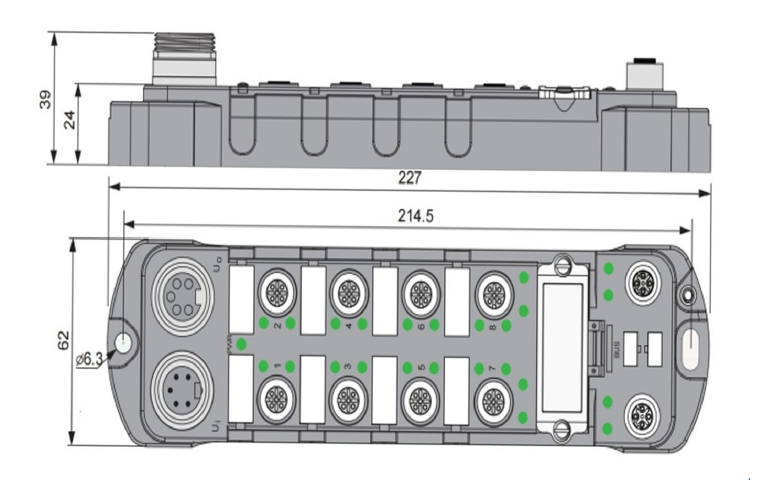

Dimensions |
227 x 62 x 39mm |
227 x 62 x 39mm |
227 x 62 x 39mm |
