uHF High-temperature and corrosion resistant Tags
Products undergo 100% testing via European-imported label consistency systems to ensure operational stability;
Materials meet environmental certification standards.
uHF High-temperature and corrosion resistant Tags
Key Features:
Products undergo 100% testing via European-imported label consistency systems to ensure operational stability;
Materials meet environmental certification standards;
 |
 |
 |
 |
 | |
|
Product Type: |
RTHTC10 |
RTHTC20 |
RTHTC30 |
RTHTC40 |
RTHTC50 |
|
Protocol Type: |
IS018000-6C |
IS018000-6C |
IS018000-6C |
IS018000-6C |
IS018000-6C |
|
Center Frequency: |
902~928MHz |
902~928MHz |
902~928MHz |
902~928MHz |
902~928MHz |
|
Chip: |
H3 |
H3 |
H3 |
U8 |
R6P |
|
Storage Capacity: |
EPC:96-496Bits,USER:512Bits |
EPC:96-496Bits,USER:512Bits |
EPC:128Bits,USER:0Bits |
EPC:128Bits,USER:0Bits |
EPC:128Bits,USER:32Bits |
|
Metal Mounting: |
Supported |
Supported |
Supported |
Supported |
Supported |
|

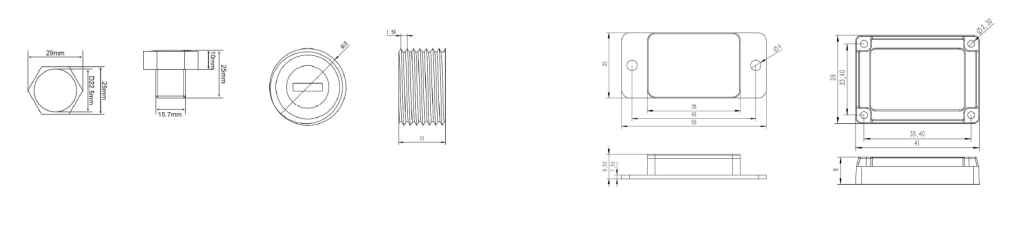

Dimensions: |

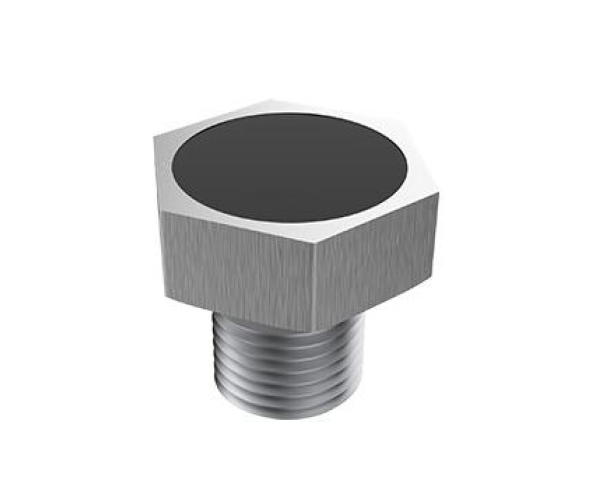

M16 screw |
18x11mm |
56x25x9.5mm |
41x29x9mm |
48x31x10mm |
|
Housing Material: |
304SS |
304SS |
304SS |
PEEK |
PA6+GF30% |
|
Color: |
Grey |
Grey |
Black |
Black |
Black |
|
Mounting Method: |
Bolts |
Bolts |
Bolts/welding |
Bolts |
Bolts |
|
Weight: |
50g |
13.5g |
41g |
11g |
28g |
|
Protection Rating: |
IP68 |
IP68 |
IP68 |
IP68 |
IP68 |
|
Metal Properties: |
Anti-metal |
Anti-metal |
Anti-metal |
Anti-metal |
Anti-metal |
|
Storage Temperature: |
-40~+150℃ |
-50~+300℃* |
-50~+300℃* |
-50~+260℃* |
-30~+250℃* |
|
Operating Temperature: |
-40~+100℃ |
-40~+100℃ |
-40~+100℃ |
-40~+100℃ |
-30~+85℃ |
|
Note: *Indicates continuous testing under high-temperature conditions for 100 hours. |
Note: *Indicates continuous testing under high-temperature conditions for 100 hours. |
Note: *Indicates continuous testing under high-temperature conditions for 100 hours. |
Note: *Indicates continuous testing under high-temperature conditions for 100 hours. | ||
|
Corresponding reader |
read/write distance | ||||
|
Installation method: |
Metal surface |
Metal surface |
Metal surface |
Metal surface |
Metal surface |
|
RT540 Series: |
0…20cm |
0…25cm |
0…20cm |
0…100cm |
0…100cm |
|
RT5411 Series: |
0…30cm |
0…30cm |
0…30cm |
0…190cm |
0…190cm |
|
RT543 Series: |
0…40cm |
0…45cm |
0…50cm |
0…280cm |
0…280cm |
