High frequency reader
The reader is a highly stable, contactless industrial-grade read/write device featuring user-friendly operation, excellent sealing and heat dissipation, high reception sensitivity, stable performance, and strong reliability. Operating at 13.56MHz, it supports the ISO/IEC 15693 standard and the ISO 18000-3M1 standard.
Products undergo 100% testing via European-imported label consistency systems to ensure operational stability.
Materials meet environmental certification standards.
High frequency reader
Key Features:
Products undergo 100% testing via European-imported label consistency systems to ensure operational stability;
Materials meet environmental certification standards;
RT927 Series
Product Overview:
The reader is a highly stable, contactless industrial-grade high-frequency device featuring user-friendly operation, excellent sealing and heat dissipation, high reception sensitivity, stable performance, and strong reliability. Operating at 13.56MHz, it supports ISO/IEC 15693, ISO 18000-3M1, and IEC 14443A standards. Equipped with an Ethernet interface and Modbus protocol support, users can manage internal hold registers and input registers via standard Modbus commands to perform inventory UID checks, memory area reads, and memory area writes.
Product Features:
- Supports Ethernet interface communication and Modbus protocol
- Compliant with ISO/IEC 15693, ISO 18000-3M1, or IEC 14443A standards
- Effective read/write range: 15cm (Data source: NXP ICODE card, ambient temperature with no interference)
- Built-in LED indicator
- ABS engineering plastic housing, withstands drops from 1.2 meters
- Provides comprehensive dynamic link libraries and demonstration software
Equipment Parameters:
- Operating Frequency: 902~928MHz
- Interface Type: M12 5-pin / M12 8-pin
- Compliant Standards: ISO/IEC 18000-6C / EPC G2C1 International Interface Standards
- Communication Protocol: MODBUS
- Sensing Range
Reading Distance: 0~150mm (Depends on tag performance and operating environment)
Write Distance: 0~150mm (Depends on tag performance and operating environment) - Read/Write Time
Read one Block: 30ms
Write one Block: 40ms - Operating Voltage: DC12~28V, POE
- RF Power: 0-28dBm (adjustable)
- Signal Indication: LED
- Communication Interface: RS485/LAN (optional)
- Operating Temperature: -25℃~+65℃
- Housing Material: ABS
- Dimensions: 90×90×41mm
- Protection Rating: IP67
- Certification Standards: CE, ROHS
Typical Applications:
Widely used in production automation, tool management, and production line data collection.
RT932 Series
Product Overview:
The reader is a highly stable, contactless industrial-grade read/write device featuring user-friendly operation, excellent sealing and heat dissipation, high reception sensitivity, stable performance, and strong reliability. Operating at 13.56MHz, it supports the ISO/IEC 15693 standard and the ISO 18000-3M1 standard.
Product Features:
- Supports RS485 interface communication,
- Supports multiple fieldbus protocols including PROFINET, EtherNET/IP, EtherCAT, and MODBUS
- Compliant with ISO/IEC 15693 and ISO 18000-3M1 standards
- Effective read/write range up to 70mm (Data source: NXP ICODE card, ambient temperature with no other interference)
- Built-in LED indicator
- ABS engineering plastic housing
- Withstands drops from 1.2 meters
- Provides comprehensive dynamic link libraries and demonstration software
Equipment Parameters:
- Operating Frequency: 902~928MHz
- Interface Type: M12 5-pin / M12 8-pin
- Compliant Standards: ISO/IEC 18000-6C / EPC G2C1 International Interface Standards
- Communication Protocol: PROFINET, EtherNET/IP, EtherCAT, MODBUS TCP, MODBUS RTU
- Sensing Range
Reading Distance: 0~30mm (Depends on tag performance and operating environment)
Write Distance: 0~50mm (Depends on tag performance and operating environment) - Read/Write Time
Read one Block: 25ms
Write one Block: 30ms - Operating Voltage: DC12~28V
- RF Power: 1.5W
- Signal Indication: LED
- Communication Interface: LAN / RS485
- Operating Temperature: -25°C to +65°C
- Housing Material: ABS + Metal
- Dimensions: 50×50×30mm
- Protection Rating: IP67
- Certification Standards: CE, ROHS
Typical Applications:
Widely used in production automation, tool management, and production line data collection.
RT931 Series
Product Overview:
The reader is a highly stable, contactless industrial-grade device featuring user-friendly operation, excellent sealing and heat dissipation, high reception sensitivity, stable performance, and strong reliability. Operating at 13.56MHz, it supports the ISO/IEC 15693 standard and the ISO 18000-3M1 standard, with RS485 interface communication and MODBUS protocol support. Users can perform inventory UID checks, read storage areas, and write storage areas by simply operating the reader’s hold registers and input registers using standard MODBUS commands.
Product Features:
- Supports RS485 interface communication and Modbus protocol
- Compliant with ISO/IEC 15693 and ISO 18000-3M1 standards
- Effective read/write distance: 65mm (Data source: NXP ICODE-slix card, ambient temperature with no interference)
- Built-in LED indicator
- ABS engineering plastic housing, withstands 1.2-meter drop
- Provides comprehensive dynamic link libraries and demonstration software
Equipment Parameters:
- Operating Frequency: 13.56 MHz
- Interface Type: 5-pin breakout cable (standard 2-meter cable)
- Compliant Standards:ISO15693
- Communication Protocol: MODBUS
- Sensing Range
Reading Distance: 0~30mm (Depends on tag performance and operating environment)
Write Distance: 0~30mm (Depends on tag performance and operating environment) - Read/Write Time
Read UID: 10ms
Read one Block: 25ms
Write one Block: 30ms - Operating Voltage: DC12~28V
- RF Power: 1W
- Communication Interface: RS485
- Operating Temperature: -25°C to +65°C
- Housing Material: ABS
- Dimensions: 21 × 49 × 10 (mm)
- Protection Rating: IP67
- Certification Standards: CE, ROHS
Typical Applications:
Widely used in production automation, tool management, and production line data collection.

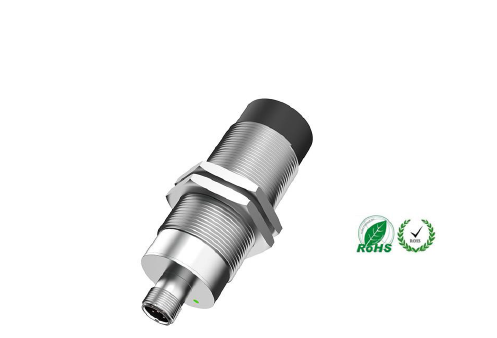

RT930 Series
Product Overview:
The reader is a highly stable, contactless industrial-grade read/write device featuring user-friendly operation, excellent sealing and heat dissipation, high reception sensitivity, stable performance, and strong reliability. Operating at 13.56 MHz, it supports the ISO/IEC 15693 standard and the ISO 18000-3M1 standard.
Product Features:
- Supports RS485 interface communication and Modbus protocol
- Compliant with ISO/IEC 15693 and ISO 18000-3M1 standards
- Effective read/write distance up to 70mm (Data source: NXP ICODE card, ambient temperature with no other interference)
- Built-in LED indicator
- ABS engineering plastic housing, withstands 1.2-meter drop
- Provides comprehensive dynamic link libraries and demonstration software
Equipment Parameters:
- Operating Frequency: 13.56 MHz
- Interface Type: M12 5-pin connector
- Compliant Standard: ISO 15693
- Communication Protocol: MODBUS RTU
- Sensing Range
Reading Distance: 0~30mm (Depends on tag performance and operating environment)
Write Distance: 0~30mm (Depends on tag performance and operating environment) - Read/Write Time
Read one Block: 25ms
Write one Block: 30ms - Operating Voltage: DC 12~28V
- RF Power: 1W
- Signal Indication: LED
- Communication Interface: RS485
- Operating Temperature: -25°C to +65°C
- Housing Material: ABS + Metal
- Dimensions: φ18 × 74mm
- Protection Rating: IP67
- Certification Standards: CE, ROHS
Typical Applications:
Widely used in production automation, tool management, and production line data collection.
RT940 Series
Product Overview:
The reader is a highly stable, contactless industrial-grade read/write device featuring user-friendly operation, excellent sealing and heat dissipation, high reception sensitivity, stable performance, and strong reliability. Operating at 13.56MHz, it supports ISO/IEC 15693 and ISO 18000-3M1 standards. The reader facilitates communication via RS232 and RS485 interfaces and supports Modbus protocol. Users can manage internal hold registers and input registers using standard Modbus commands to perform inventory UID checks, memory area reads, and memory area writes.
Product Features:
- Supports RS232/RS485 interface communication with Modbus protocol compatibility
- Compliant with ISO/IEC 15693 and ISO 18000-3M1 standards
- Effective read/write range: 25cm (Data source: NXP ICODE card, ambient temperature with no interference)
- Built-in LED indicator
- ABS engineering plastic housing, withstands drops from 1.2 meters
- Provides comprehensive dynamic link libraries and demonstration software
Equipment Parameters:
- Operating Frequency: 13.56 MHz
- Interface Type: 9-pin aviation connector
- Compliant Standard: ISO 15693
- Communication Protocol: MODBUS
- Sensing Range
Reading Distance: 0~250mm (Depends on tag performance and operating environment)
Write Distance: 0~250mm (Depends on tag performance and operating environment) - Read/Write Time
Read one Block: 30ms
Write one Block: 40ms - Operating Voltage: DC 12~24V
- RF Power: 30dBm
- Signal Indication: LED
- Communication Interface: RS232, RS485
- Operating Temperature: -25°C to +65°C
- Housing Material: ABS
- Dimensions: 80*80*40.5 mm
- Protection Rating: IP67
- Certification Standards: CE, ROHS
Typical Applications:
Widely used in production automation, tool management, and production line data collection.
RT937 Series
Product Overview:
The reader is a highly stable, contactless industrial-grade high-frequency reader/writer featuring user-friendly operation, excellent sealing and heat dissipation, high reception sensitivity, stable performance, and strong reliability. Operating at 13.56MHz, it supports ISO/IEC 15693 and ISO 18000-3M1 standards, features Ethernet interface communication, and supports Modbus protocol. Users can manage the reader’s hold registers and input registers via standard Modbus commands to perform inventory UID checks, memory area reads, and memory area writes.
Product Features:
- Supports Ethernet interface communication and Modbus protocol
- Compliant with ISO/IEC 15693 and ISO 18000-3M1 standards
- Effective read/write distance: 21cm (Data source: NXP ICODE card, ambient temperature with no interference)
- Built-in LED indicator
- ABS engineering plastic housing, withstands 1.2-meter drop
- Provides comprehensive dynamic link libraries and demonstration software
Equipment Parameters:
- Operating Frequency: 13.56 MHz
- Interface Type: M12 5-pin, M12 8-pin
- Compliant Standard: ISO 15693
- Communication Protocol: MODBUS
- Sensing Range
Reading Distance: 0~150mm (Depends on tag performance and operating environment)
Write Distance: 0~150mm (Depends on tag performance and operating environment) - Read/Write Time
Read one Block: 30ms
Write one Block: 40ms - Operating Voltage: DC12~28V/POE
- RF Power: 30dBm
- Signal Indication: LED
- Communication Interface: RS485/LAN (optional)
- Operating Temperature: -25°C to 65°C
- Housing Material: ABS
- Dimensions: 90*90*41 (mm)
- Protection Rating: IP67
- Certification Standards: CE, ROHS
Typical Applications:
Widely used in production automation, tool management, and production line data collection.
