Flexible Printable Anti-Metal Tags
Products undergo 100% testing via European-imported label consistency systems to ensure operational stability;
Materials meet environmental certification standards;
Soft label material conforms to curved surfaces;
Compatible with all printer types.
Flexible Printable Anti-Metal Tags
Key Features:
Products undergo 100% testing via European-imported label consistency systems to ensure operational stability;
Materials meet environmental certification standards;
Soft label material conforms to curved surfaces;
Compatible with all printer types.
|
Note: Compatible with A9025UM antenna |
 |
 |
 |
 |
|
Product Type: |
RTF50 |
RTF13 |
RTF65 |
RTF95 |
|
Protocol Type: |
IS018000-6C |
IS018000-6C |
IS018000-6C |
IS018000-6C |
|
Center Frequency: |
902~928MHz |
902~928MHz |
902~928MHz |
902~928MHz |
|
Chip: |
H3 |
H3 |
U8 |
U8 |
|
Storage Capacity: |
EPC:96-496Bits,USER:512Bits |
EPC:96-496Bits,USER:512Bits |
EPC:128Bits,USER:0Bits |
EPC:128Bits,USER:0Bits |
|
Metal Mounting: |
Not supported |
Not supported |
Supported |
Supported |
|

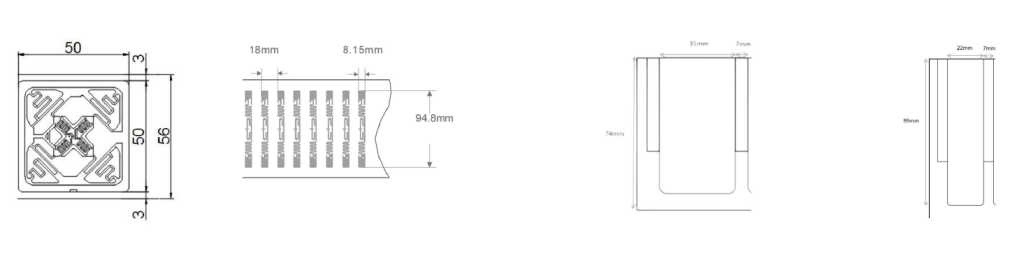

Dimensions: |
50x50x0.1mm |
99x13x0.1mm |
65x35x1.25mm |
95x25x1.25mm |
|
Housing Material: |
PET |
PET |
PET |
PET |
|
Color: |
White |
White |
White |
White |
|
Mounting Method: |
Adhesive backing |
Adhesive backing |
Adhesive backing |
Adhesive backing |
|
Weight: |
0.1g |
0.1g |
1g |
1.5g |
|
Protection Rating: |
IP20 |
IP20 |
IP20 |
IP20 |
|
Metal Properties: |
– |
– |
Anti-metal |
Anti-metal |
|
Storage Temperature: |
18~+28℃ |
18~+28℃ |
18~+28℃ |
18~+28℃ |
|
Operating Temperature: |
-20~+55℃ |
-20~+55℃ |
-40~+70℃ |
-40~+70℃ |
|
Corresponding reader read/write distance |
||||
|
Installation method: |
Non-metallic surface |
Non-metallic surface |
Non-metallic surface/Metal surface |
Non-metallic surface/Metal surface |
|
FR540 Series: |
0…300cm |
0…330cm |
0…80cm/0…150cm |
0…80cm/0…150cm |
|
FR541 Series: |
0…500cm |
0…500cm |
0…180cm/0…250cm |
0…180cm/0…250cm |
|
FR543 Series: |
0…800cm |
0…1000cm |
0…400cm/0…400cm |
0…400cm/0…400cm |
|
FR5404 Series: |
0…600cm |
0…700cm |
0…300cm/0…500cm |
0…300cm/0…500cm |
