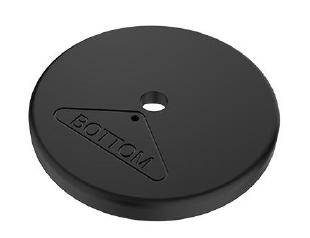

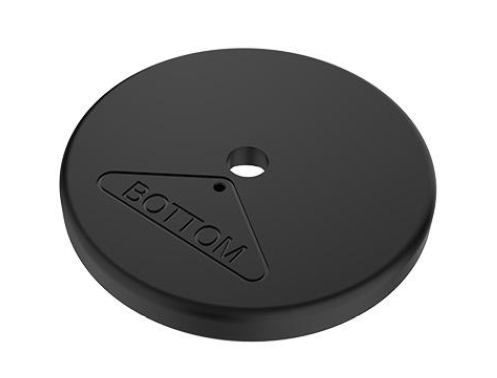

Circular High-Temperature Resistant Tags
Products undergo 100% testing via European-imported label consistency systems to ensure operational stability;
Materials meet environmental certification standards.
High-temperature and corrosion resistant Tags
Key Features:
Products undergo 100% testing via European-imported label consistency systems to ensure operational stability;
Materials meet environmental certification standards;
 |
 |
 |
 | |
|
Product Type: |
RT5HT1 |
RT5HT2 |
RT5HT3 |
RT5HT4 |
|
Protocol Type: |
ISO15693 |
ISO15693 |
ISO15693 |
ISO15693 |
|
Center Frequency: |
13.56MHz |
13.7MHz |
13.56MHz |
13.7MHz |
|
Chip: |
CODE SLIX2 |
CODE SLIX2 |
CODE SLIX2 |
CODE SLIX2 |
|
Storage Capacity: |
320byte |
320byte |
2000byte |
2000byte |
|
Metal Mounting: |
Not Supported |
Supported |
Supported |
Supported |
|

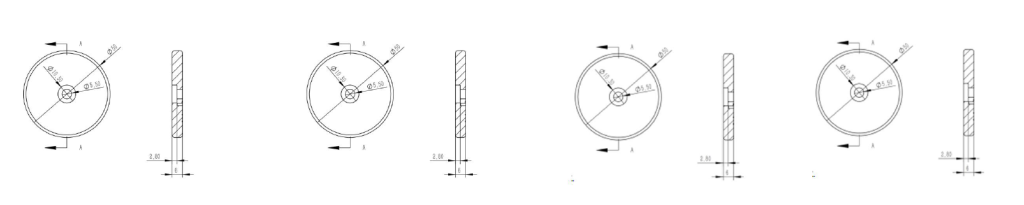

Dimensions: |
50x6mm |
50x6mm |
50x6mm |
50x6mm |
|
Housing Material: |
PPS |
PPS |
PPS |
PPS |
|
Color: |
Black |
Black |
Black |
Black |
|
Mounting Method: |
Bolts |
Bolts |
Bolts/welding |
Bolts |
|
Weight: |
11g |
11g |
11g |
11g |
|
Protection Rating: |
IP68 |
IP67 |
IP67 |
IP67 |
|
Metal Properties: |
– |
Anti-metal |
– |
Anti-metal |
|
Storage Temperature: |
-35~+250℃ |
-35~+250℃* |
-35~+250℃* |
-35~+250℃* |
|
Operating Temperature: |
-20~+100℃ |
-20~+100℃ |
-20~+100℃ |
-20~+100℃ |
|
Note: *Indicates continuous testing under high-temperature conditions for 10 hours. |
Note: *Indicates continuous testing under high-temperature conditions for 10 hours. |
Note: *Indicates continuous testing under high-temperature conditions for 10 hours. | ||
|
Corresponding reader |
read/write distance | |||
|
Installation method: |
Metal surface |
Metal surface |
Metal surface |
Metal surface |
|
RT320 Series: |
0…90mm |
0…45mm |
0…90mm |
0…45mm |
|
RT321 Series: |
0…85mm |
0…65mm |
0…85mm |
0…65mm |
|
RT323 Series: |
0…100mm |
0…60mm |
0…100mm |
0…60mm |
